Part Number |
Description |
Picture |
Store Stock Status |
Price in Canadian Dollars |
Track | Minitrains HOe -
009 -HOn30 Gleissystem / Track System |
9300xx |
MinitrainS Track system |
|
Only available Direct from MinitrainS |
$0.00 |
|
As a real Narrow Gauge Track System with a small radius was not available
MinitrainS decided to create one. Their new track system comes with a 140 mm ( app. 5,5 inch) radius curves and
thus allows building layouts even on a bookshelf. The track profile is CODE 83 (2.1 mm).
Please be aware that the small radius allows only to run shorter locomotives on it. The MinitrainS Heeresfeldbahn 0-
8-0 locos run on it, but the attached coaches will be pulled off the track. For the larger locos the best is to use the
PECO track. If there is enough demand MinitrainS will develop a larger radius solution.
There is a downloadable planning sheet on the MinitrainS web site.
This is a limited production Item Only Available Direct from MinitrainS. |
9301 |
Short straight track 77mm long (2 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
|

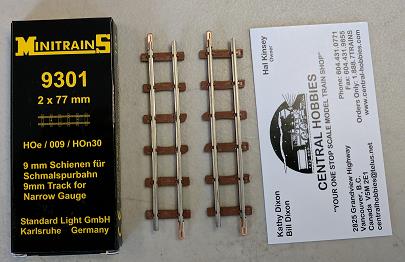

Minitrains 9301 Track pieces shown with a standard buisness card to give you an
idea of the size of the piece. |
9302 |
Short curved track 30° Radius 140mm (2 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
|

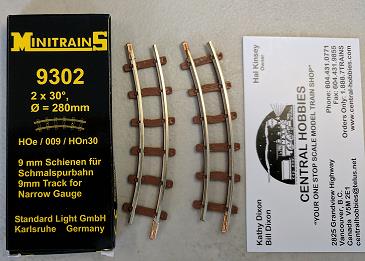

Minitrains 9302 Track pieces shown with a standard business card to give you an
idea of the size of the piece. |
9303 |
Feeder track 154 mm long (1 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
9304 |
Isolation track 77 mm long (2 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
9306 |
Turnout left Radius 140 mm (1 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
|

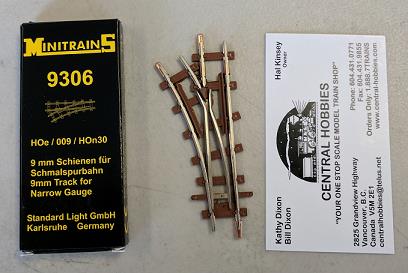

Minitrains 9306 Track pieces shown with a standard business card to give you an
idea of the size of the piece. |
9311 |
Long straight track 154 mm long (2 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
9313 |
Short straight track 63 mm long (2 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
9316 |
Turnout right Radius 140 mm (1 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
|

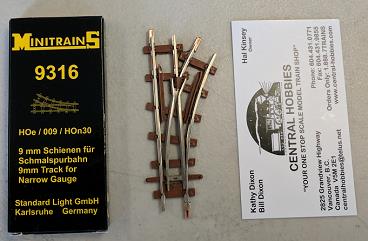

Minitrains 9316 Track piece shown with a standard business card to give you an idea
of the size of the piece. |

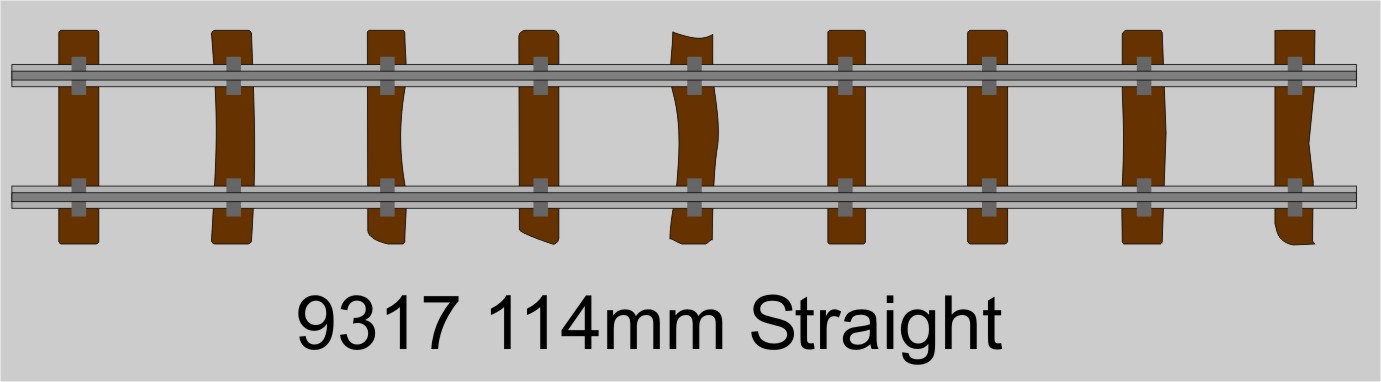

9317 |
114mm Straight |
|
Only available Direct from MinitrainS |
$0.00 |

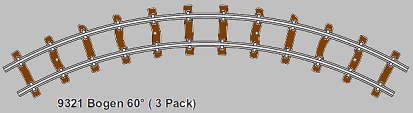

9321 |
Long curved track 60° Radius 140mm (3 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
|

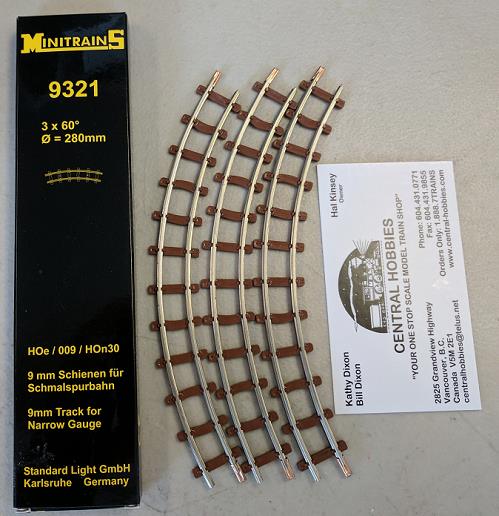

Minitrains 9321 Track pieces shown with a standard business card to give you an
idea of the size of the piece. |
9340 |
215mm Radius Curve - 30 Degree |
|
Only available Direct from MinitrainS |
$0.00 |
9341 |
215mm Radius Curve - 32.5 Degree |
|
Only available Direct from MinitrainS |
$0.00 |
9342 |
215mm Radius Curve - 15 Degree |
|
Only available Direct from MinitrainS |
$0.00 |
9346 |
Turnout left Radius 27.5 Degree 215 mm (1 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
9347 |
Turnout right Radius 27.5 Degree 215 mm (1 per pack) |
|
Only available Direct from MinitrainS |
$0.00 |
Peco |
Peco Set track information. |
|
Only available Direct from MinitrainS |
$0.00 |
|
The MinitrainS track is a very sharp radius (5 1/2" Radius).
If you need broader radius curves the Peco 00-9 Setrack is 9" radius.
For a broader radius than that you can use Peco 00-9 Streamline Turnouts and Flex track, either their Irregular
sleeper type (matches their Setrack) or their Mainline Sleeper Type (matches their Streamline turnouts). |
